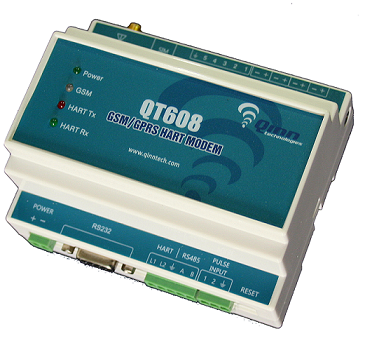

QT608

GSM/GPRS HART Modem.

Ideal for Data Acquisition from HART Client Devices

Data acquisition from remote HART Client devices.
Single Client and Multi Client versions.
Get Data from up to 10 HART clients win Multi Client version.
Supports HART client version 5,6 and 7.
Optional Analog inputs for instantaneous monitoring (4-20mA current or 0-10v ).
Optional Digital Inputs for remote monitoring.
Optional Digital outputs for remote controls.
RS232 port for Configuration and debugging.
Optional RS485 port for MOBDUS Data Acquisition.
Support HTTP, MQTT and FTP protocols for data communication.
Customizable firmware.
Built in RTC.
High reliability and Low cost.

GSM 850/900/1800/1900MHz GPRS Class 10
Multi-slot class 10 (4 Down; 2 Up; max.5) Max BR Download 85.6 Kbps Coding Scheme CS1-CS4
Four Analog Inputs (4-20mA or 0-5V)(optional)
2 Digital Inputs(optional)
Optional 5 GPIOs configurable as Digital inputs or Digital Outputs(optional)
1 RS232 DB9 Port
1 RS485 Port (Optional)
12-30V DC input power
Sleep mode for low power consumption

Customizable firmware based on project requirements
Acquire Data from one or MOre HART clients
Change Polling Identification number of HART clients
Single Client and Multi Client versions
Log up to 15,000 records in Single Client version
Server Communication using protocols like HTTP,MQTT or FTP
Communication of data to server based on specific events or on configured intervals
Storing and forwarding of data in case of communication failures
Generation of events on change of Digital Inputs generation alerts to Server or SMS alerts to configured group of numbers.
Facility to store mobile numbers in different groups for authorization and SMS alerts
Configuration of parameters via serial port or remotely by SMS or from the Server
Facility to go on low power mode when there is no communication and automatic wakeup on incoming communication, serial events or DI events.
Watchdog timer
Over the air updation of firmware

Data Acquisition from HART client Devices and communication to Server
Remote monitoring application
